Reading Chemical Structures

Image result for chemical structure of caffeine

Take a look at the image above. This is the chemical structure of caffeine, a widely consumed chemical that you are probably familiar with (it's in your coffee). Scientists use this as a shorthand depiction of chemical structures. While this image may be confusing at first, it's actually very simple to understand once you know the rules! And there are only two!

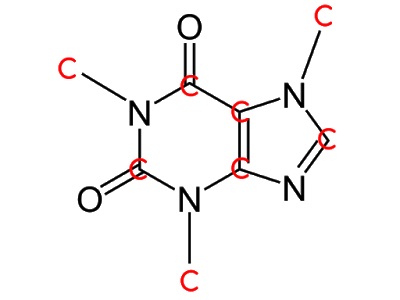

The first rule is carbon at the corners. What does this mean? Well, at every corner where you do not see a letter (an atom), there is an implied carbon. This shorthand notation allows us to show the structure without writing in each single carbon. There is also an implied carbon at the end of every line. Using this rule, let's place carbons at the corners and the ends of the lines.

Now that we have the carbons in place, let's move to the next rule: hydrogens bonded to carbons are implied. To understand this rule, we must first understand the bonding properties of carbon. Carbon likes to make four bonds with other elements in order to satisfy the octet rule. Some of these carbons do not appear to have four bonds. For example, let's take a look at the leftmost carbon in the upper left corner. It has only bonded once (with nitrogen), so it has three bonds left. According to our rule, these three bonds are with hydrogen atoms. So, we can draw the three bonded hydrogen atoms for our carbon atom. It will look like this:

The carbon atom is now "happy" since it has bonded with four other atoms. Let's apply this hydrogen bonding rule to the rest of the carbons. Now, our structure will look like this:

We can now determine the chemical formula for caffeine. By looking at the structure, we can determine that we have carbon (C), hydrogen (H), oxygen (O), and nitrogen (N). By counting up the number of atoms for each element, we can determine that there are 8 carbons, 10 hydrogens, 2 oxygen, and 4 nitrogens.

We can write the chemical formula of caffeine: C8H10N4O2.

Now you can determine the formula for any chemical just by looking at its structure!
________
Image Credit:
(1) “Caffeine Chemical Structure.” Wikimedia Commons, upload.wikimedia.org/wikipedia/commons/thumb/5/5e/Caffeine-2D-skeletal.svg/934px-Caffeine-2D-skeletal.svg.png.
